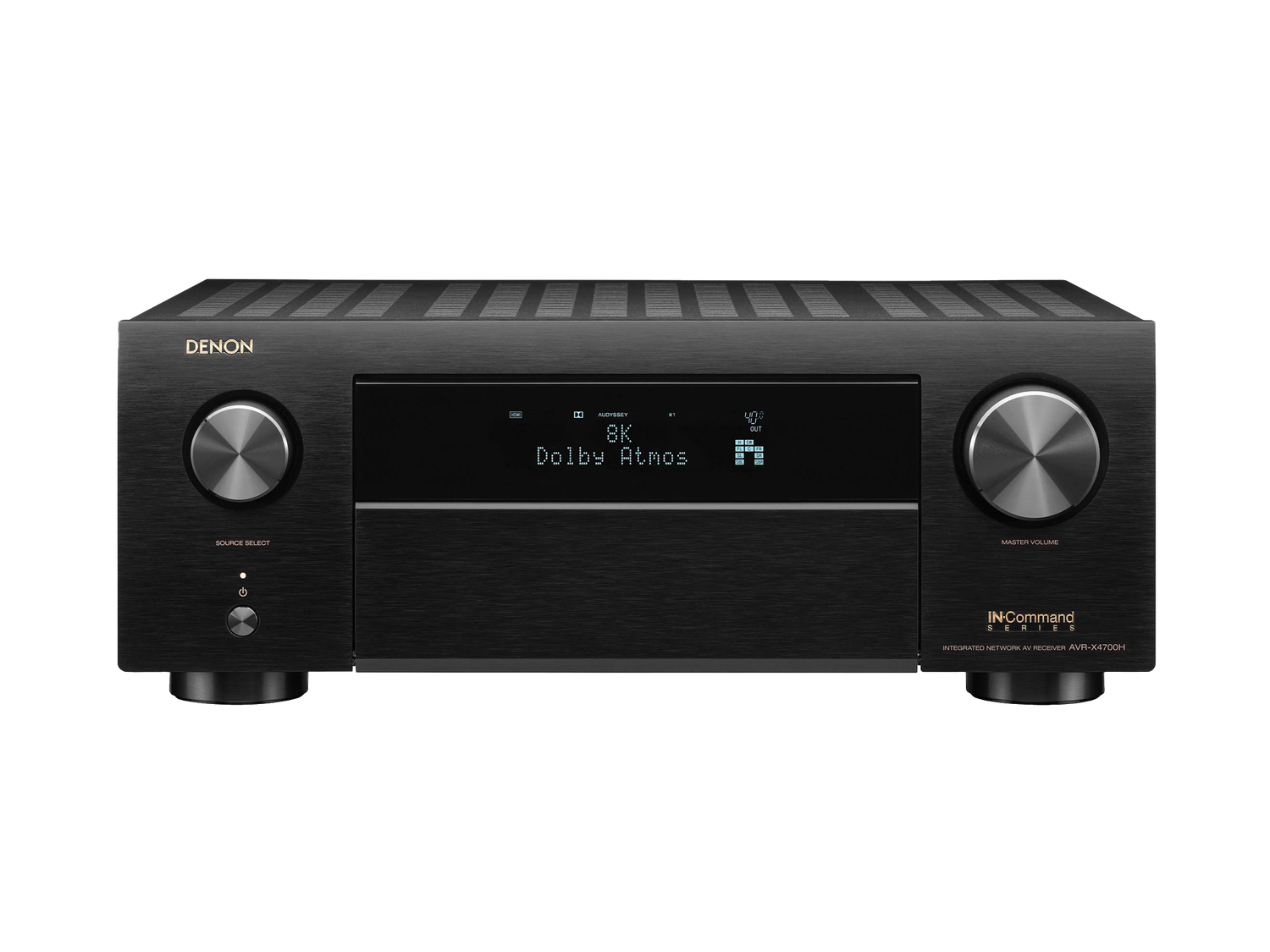

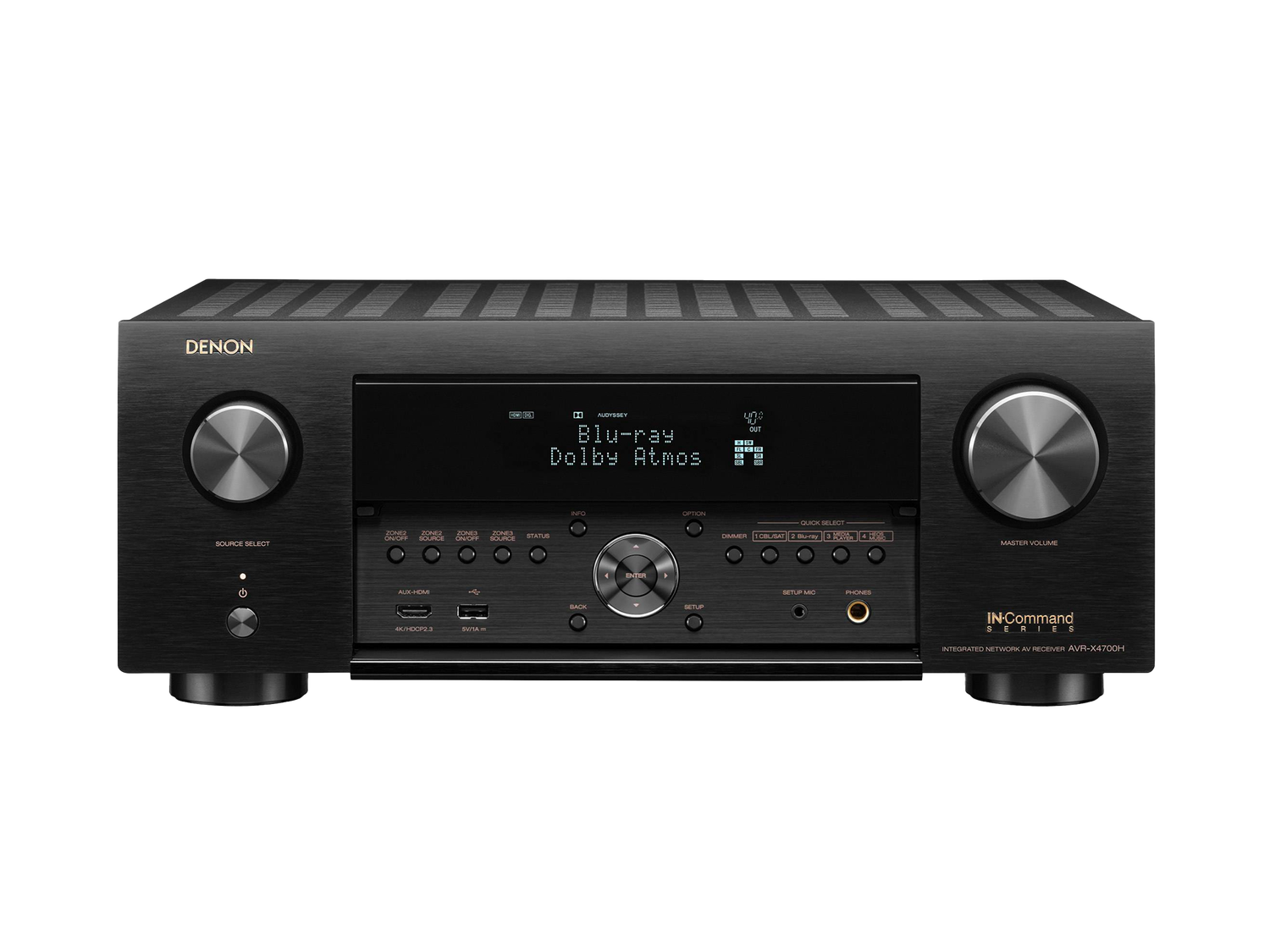

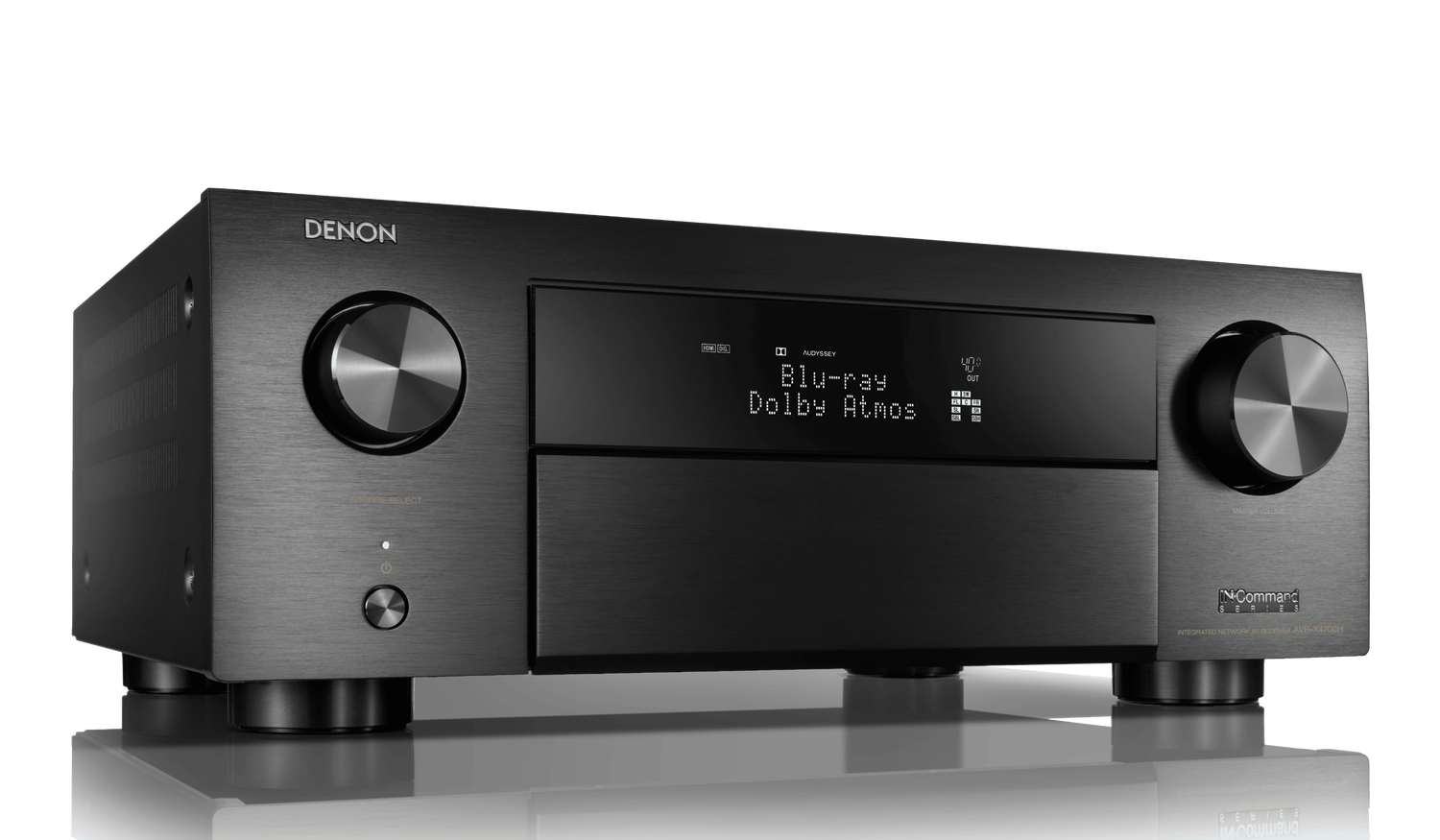

AVR-X4700H

9.4 声道 AV 环绕立体声功放

Denon AVR-X4700H 9.2声道8K AV接收机，单声道235W，支持3D音频格式，如Dolby Atmos®、Dolby Atmos Height Virtualization技术，DTS:X®，DTS Virtual:X™，IMAX®增强技术和Auro-3D®。配备更新HDMI接口，支持8K/60Hz和4K/120Hz传输、VRR、ALLM、动态HDR、HDR10+和eARC。

9.2 声道
每声道 125 瓦
8K 超高清
3D 音频
内置 HEOS®
8 个 HDMI 输入接口

选择 Quality

查找零售商

AVR-X4700H

体验功能丰富的 AV 接收机

通过支持 eARC 的 8K HDMI 接口，兼容先进的视频及 3D 音频格式，确保在未来数年都能带来出色的娱乐体验。

AVR-X4700H

为震撼音频体验量身优化

AVR-X4700H

为震撼音频体验量身优化

令人震撼的家庭影院体验

AVC-X4700H 凭借 8K/60Hz 直通、4K/120Hz 游戏直通，以及对先进的 HDMI 规格的支持，带来令人震撼的家庭影院体验。这款全新 AVC-X4700H 让你如今即可打造卓越的 4K 家庭影院体验，同时随时为 8K 升级做好准备。

全面支持 3D 音频

沉浸于 3D 音频世界，兼容杜比全景声 ®、杜比全景声高度虚拟化技术、DTS:X®、DTS Virtual:X™及 IMAX® 增强。借助内置的 9 声道放大器，可搭建 5.1.4 或 7.1.2 杜比全景声环绕系统。

支持 eARC 的 8K HDMI 视频部分

尽享喜爱的电影、节目和游戏，呈现卓越画质。AVC-X4700H 搭载先进 HDMI 模块（8 进 3 出），配备专用 8K 输入接口，支持 8K/60Hz 和 4K/120Hz 视频直通及升频。

高码率音频

从你喜爱的音源中，感受高码率音轨带来的卓越音频保真度。

AVR-X4700H

详细信息和规格

在线说明书

Multichannel Surround

DTS HD Master / DTS:X Yes / Yes
DTS Neo:X / DTS Neural:X No / Yes
DTS Virtual:X Yes
Dolby TrueHD / Dolby Atmos Yes / Yes
Dolby ProLogic Il / Dolby Surround No / Yes
Auro 3D Yes
Multichannel Stereo Yes
Max Number of Processing (Preamp) Channels 11.2
IMAX Enhanced Yes

Sound Enhancements

Discrete Power Amplifier 9
D.D.S.C. HD Digital Yes (32 bit)
Pure Direct Yes
High Grade Audio Components Yes
Clock Jitter Reducer Yes
Alpha Processing AL32 Processing Multichannel
Denon Link HD Yes
Audyssey MultEQ XT32
Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
Audyssey LFC Yes
Audyssey APP Support Yes
Compressed Audio Restorer Yes

Network

HEOS Multiroom and Streaming Yes
Lossy Formats: MP3 / WMA / AAC Yes / Yes / Yes
Lossless Formats: FLAC / ALAC / WAV Yes / Yes / Yes
DSD Audio Streaming up to DSD5.6
FLAC HD 192/24 Yes
WAV 192/24 Yes
ALAC 192/24 Yes
Gapless playback Yes (FLAC, WAV, ALAC, DSD)
AirPlay Audio Streaming Yes
AirPlay 2 Yes
Internet Radio TuneIn
Spotify Connect* / Tidal* / Deezer* / others * Yes / Yes / Yes / Yes
Compatible with Remote APP for Smart Phones Android / iOS
Compatible with Remote APP for Tablets Android / iOS/Amazon Kindle
Ethernet Ports Yes
Wi-Fi Yes
Bluetooth Yes

HDMI

HDMI Inputs: Back / Front 7 / 1
HDCP 2.2 support Yes
HDCP2.3 support Yes
HDMI Outputs: Main / Zone 2 / 1
HDMI max Resolution (8k / 4k) 8k/60 - 4k/120**
Video Conversion Analog -> HDMI Yes
Analog to HDMI Scaling 480i/576i up to 8K 60/50
HDMI to HDMI Scaling up to 8K 60/50
GUI Overlay on HDMI Yes
HDMI: 8K / 4K / CEC / eARC Yes / Yes / Yes / Yes
HDMI: 3D / 4K / CEC / ARC Yes / Yes / Yes / Yes
HDMI: Dolby Vision / HDR 10+ / Dynamic HDR / HLG Yes / Yes / Yes / Yes
Enhanced ARC Yes
HDMI: ALLM / QMS / QFT / VRR Yes / Yes / Yes / Yes
HLG / Dolby Vision Yes / Yes
4K Signal Pass-through / Scaling / GUI Overlay Yes / Yes / Yes
HDMI pass-though in standby mode Yes
Picture Adjust / Noise Reduction Yes / Yes
CEC Yes
DSD Audio Capability Yes
Audio Return Channel Yes
Auto LipSync Yes

Multi-room / CI

HEOS Multiroom integrated Yes
TV Sound grouping Yes
Multi-Room Zones 3
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog Yes (2ch) / Yes (2ch) / Yes / Yes
Zone Audio Output: Speaker / Preout Yes / Yes
Zone HDMI Output from HDMI Source Yes
Webbrowser User Interface Yes
Smart Remote Management Yes
IP Control / RS232 Control / Web Control / App Control Yes / Yes / Yes / Yes
Remote In / Out Yes / Yes
DC Trigger Output 2

Others

Voice Control - Works with Amazon Alexa Yes
Auto Speaker Setup by Microphone Audyssey MultEQ XT32
FL Display 2 lines
Graphic User Interface - GUI Advanced
ISF Certification Yes
GUI Languages 9
Setup Assistant Yes
Quick Select Plus / Quick Select Yes / No
Firmware Update by: Network / USB Yes / Yes
Variable Cross Over Yes
Optimized Bass Redirection Yes
Bass Sync Yes
ECO Mode Yes
Auto Power Off Yes
Sleep Timer Yes

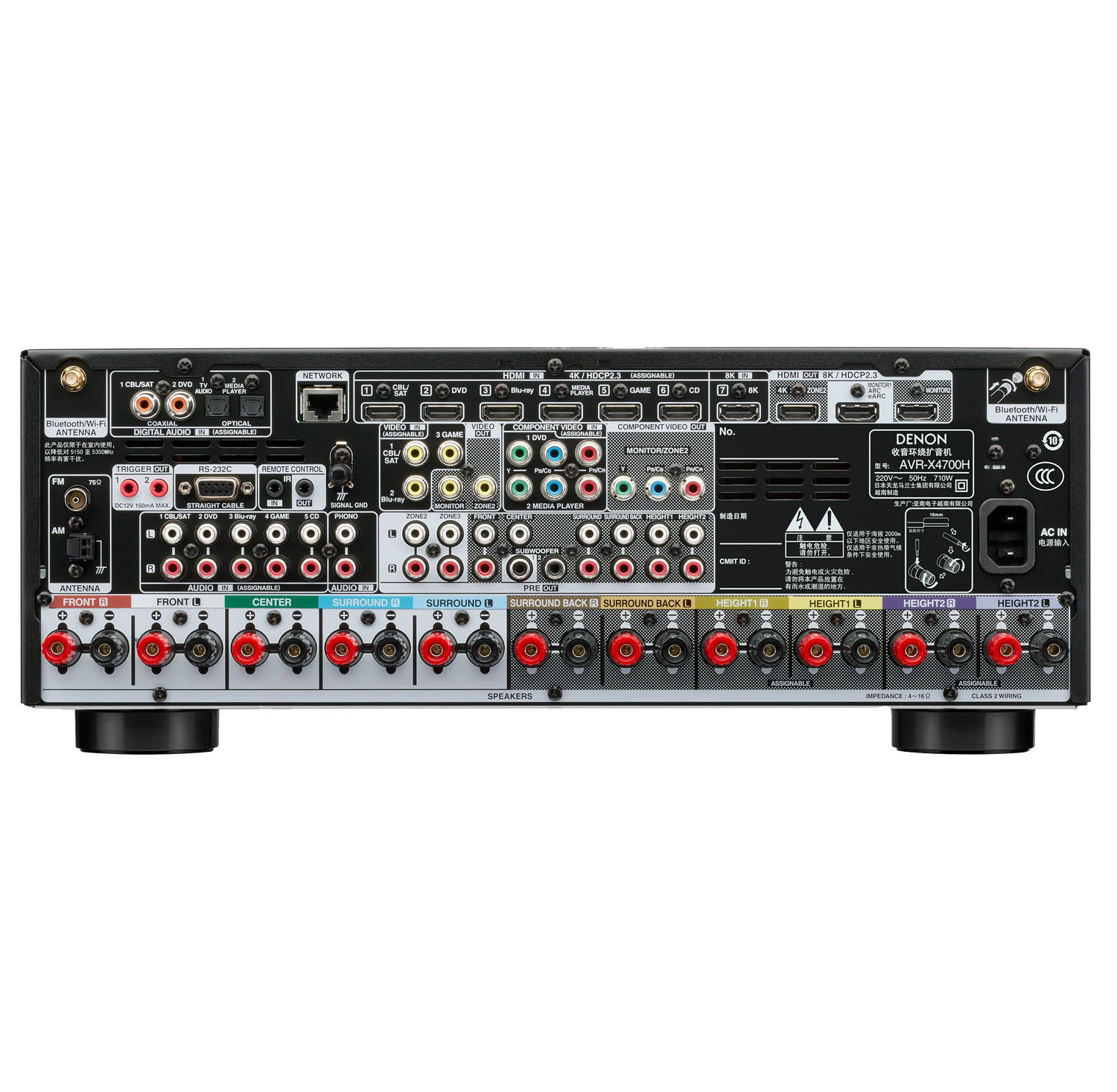

Inputs/Outputs

Composite In / Out 3 / 2
Component In / Out 2 / 1
HDMI In / Out 7+1 / 3
Multi-room Video Out: Video / HDMI Yes / Yes
Analogue In/out 5 / No
Phono (MM) In Yes
Digital In: Optical / Coaxial 2 / 2
Multi-room Out: Analog / Digital 2 / No
Multichannel Pre-Out Yes (11.2)
Subwoofer Out 2 (independent)
Speaker Terminal: Gold Plated Screw / Regular Screw No / Yes
Number of Speaker Terminals 11
Speaker A/B / Bi-amp Drive / Multi-Room Speaker assignable
Speaker A / B assignable
Bi-amp Drive assignable
Multi-Room Speaker Terminal assignable
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB No / No / No / Yes / Yes
USB Audio / Made for iPod / Made for iPhone Yes / AirPlay / AirPlay
FM Tuner with RDS Yes

Specifications

Number of Power Amps 9
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) 125 W
Power Output (6 ohm, 1kHz, 0.7% 2ch Drive) 165 W
Power Output (6 ohm, 1kHz, 1% 1ch Drive) 200 W

General

Available colors: Black / Premium Silver Yes / Yes
Metal Front Panel Yes
System Remote Control RC-1219
Pre-programmed / Learnable / LCD Display Yes / No / No
Power Consumption in W 710
Power Consumption No-Sound (ECO On / Off) in W 65 W / 110 W
Standby Consumption in W 0.1
CEC Standby Consumption in W 0.5
Network Control On Consumption in W 3.7
Maximum Dimensions
Antenna: Horizontal: (W x D x H) in Inches
Antenna: Vertical: (W x D x H) in Inches
W/O Antenna: (W x D x H) in Inches
434 x 389 x 167
(434 x 389 x 236)
【 434 x 379x 167 】
Weight in kg 13.7
