140W双声道集成式放大器，带USB-DAC

PMA-1700NE集成式功放采用出色的大电流的单推挽电路和Advanced AL32 Processing Plus，重现纯净原音。

  • 立体声放大器
  • 每声道 70 W（8 欧姆）
  • AL32 处理
  • USB-DAC
  • 精准电子控制
  • MM/MC 唱机
颜色
银色
银色
查找零售商 PMA-1700NE

PMA-1700NE

PMA-1700NE

Estimated to ship on {0}
PMA-1700NE

探索身临其境的上乘功放

更大带宽捕捉从深沉低音到细腻高音的每一种声音。
PMA-1700NE

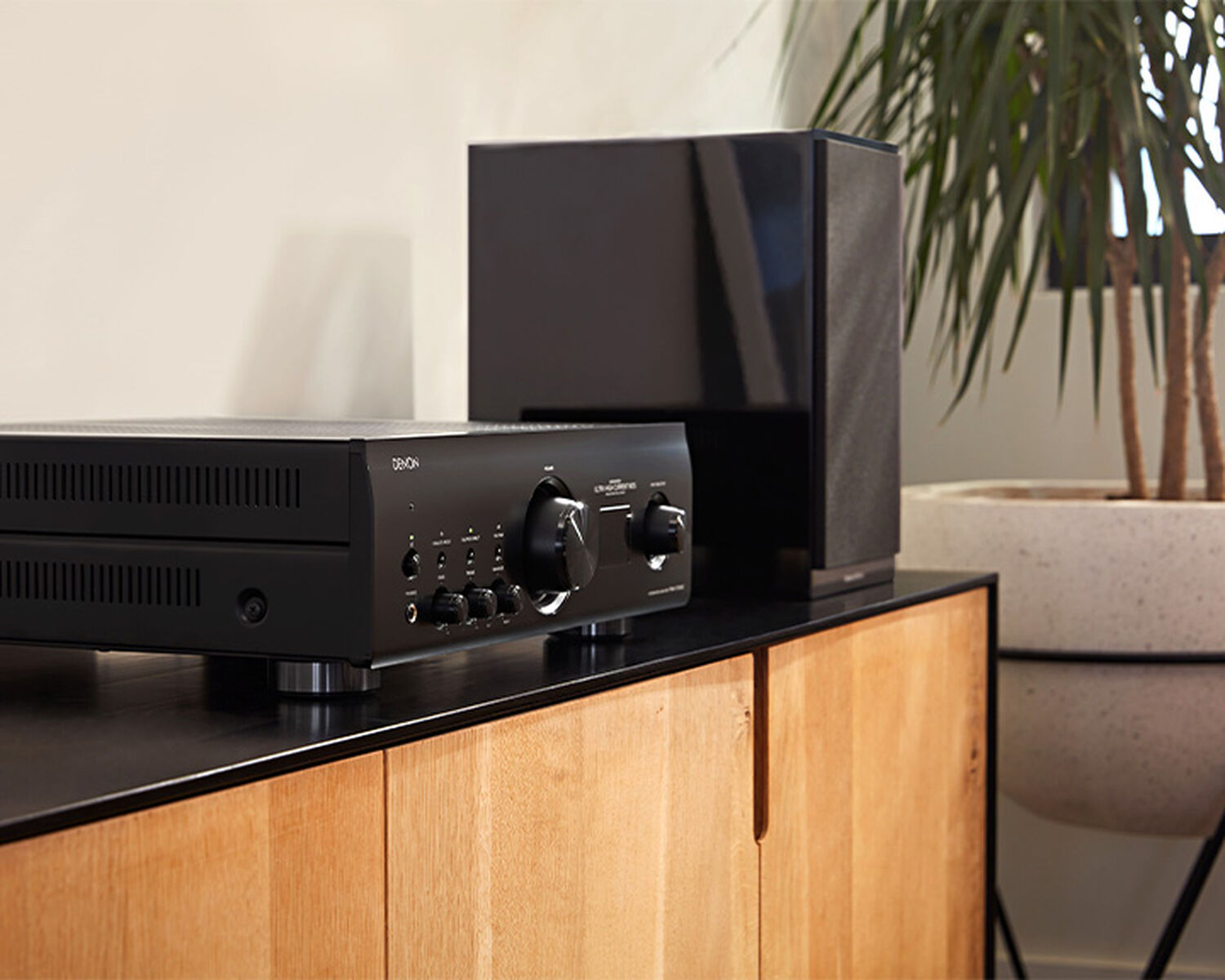

强劲功率，忠实放大

集成放大器带来强劲音质

采用Denon高端技术打造，这款放大器两声道输出功率达 140 瓦。

忠实的音频还原

先进的 AL32 Processing Plus 技术，呈现艺术家想要的丰富细腻音质。

精选组件，扎实可靠

凭借 110 余年音频领域的卓越积淀，天龙产品经久耐用。

PMA-1700NE

为您的高保真音响体验注入澎湃动力

PMA-1700NE

为您的高保真音响体验注入澎湃动力

这款集成放大器每声道输出功率高达 140 W（4 欧姆），可强劲驱动您的扬声器。它兼容多种 6 扬声器类型和阻抗，确保运行稳定可靠。

AL32 处理增强版支持高达 384 kHz/32 位的高解析度音频源。该算法可还原数字录制过程中丢失的信息，呈现细节丰富的逼真音效。

为精确同步数字电路，PMA-1700NE 配备了 USB-DAC 功能，支持高达 11.2-MHz DSD 和 384-kHz/32 位 PCM 的高解析度输入信号。这款 DAC 采用更高品质元件打造，可有效抑制抖动，确保数模转换精准无误。

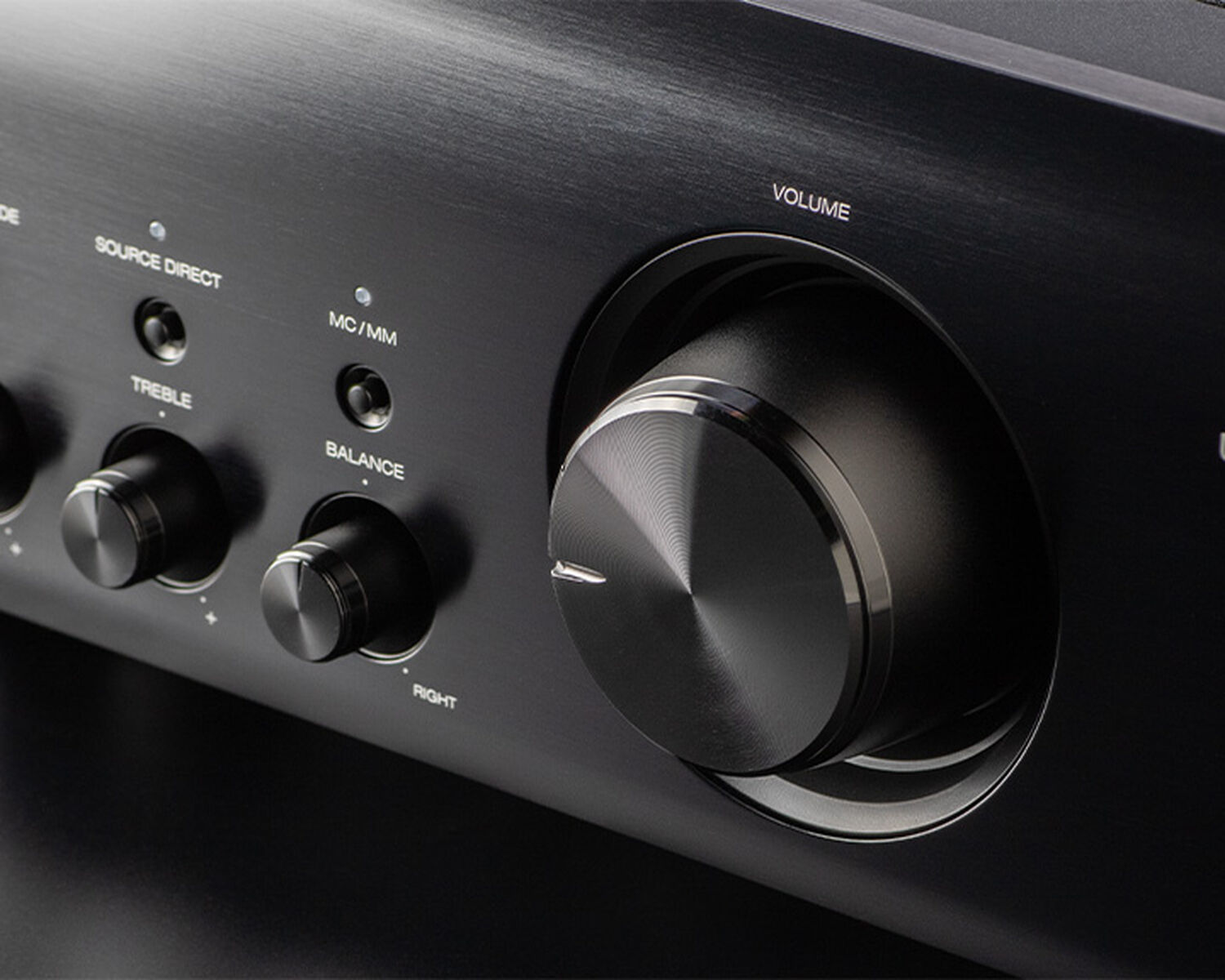

PMA-1700NE 采用电子音量、平衡和音调控制，保留了模拟操控感，其特有的机构可实现平滑、线性的调节体验。

关键技术

  • Ultra 32 Processing Ultra AL32 Processing is the latest in analog waveform reproduction technology from Denon.
  • Ultra 32 Processing Ultra AL32 Processing is the latest in analog waveform reproduction technology from Denon.

比较 Denon 功率放大器

  • 声道：
  • 功率输出
此型号
PMA-1700NE
PMA-1700NE
140W双声道集成式放大器，带USB-DAC
  • 声道：: 2通道
  • 功率输出: 每通道70瓦
PMA-900HNE
PMA-900HNE
内置HEOS®音乐流媒体功能的网络集成式放大器
  • 声道：: 2通道
  • 功率输出: 每通道 50 瓦
PMA-A110
PMA-A110
限量版110周年纪念款 160W双声道集成式放大器
  • 声道：: 2通道
  • 功率输出: 每通道80瓦
PMA-1700NE
详细信息和规格
  • Unit (W x D x H) 434 x 410 x 135mm
    17.1 x 16.1 x 5.3in
  • Cabinet Size (W x D x H) 434 x 374 x 135mm
    17.1 x 14.7 x 5.3in
  • Net weight 17.6kg
    38.8lb
  • Packaging Dimensions (W x D x H) 548 x 520 x 249mm
    21.6 x 20.5 x 9.8in
  • Packaging gross weight 20.4kg
    45lb
  • Carton Color 2 Color
  • Cushion / Packing 4 Separate / Sheet
  • Panel Color SP / BK
  • Front (Center) Panel Aluminum
  • Side cover SECC with 4 straight emboss
  • Side screw SP: Nickel / BK: Black
  • Rear Panel SECC t1.0mm
  • Chassis Material SECC t1.2mm
  • Bottom Layer Single
  • Volume Knob Aluminum
  • Input Selector Aluminum
  • Bass/Treble/Balance/ Phono Sel knobs Aluminum
  • Power button Aluminum
  • Other knob/button (LOUDNESS, SOURCE DIRECT etc) Mold (Source Direct,Analog Mode,MM/MC)
  • Foot ABS resin with rigid rib
    w/Hot stamp
    (H : 20mm)
  • Heatsink for Power Amplifier Extruded Aluminum
  • Rated Output Power 70W + 70W
    (8ohm,20Hz-20kHz,THD0.07%)
    140W + 140W
    (4ohm, 1kHz, THD0.7%)
  • Speaker Impedance A or B : 4 ~ 16ohm
    A + B : 8 ~ 16ohm
  • Frequency Response 5Hz - 100kHz (0~ -3dB)
  • Total Harmonic Distortion 0.01 % (Rated output: –3 dB),
    8 ohm/ohms, 1 kHz
  • Dumping Factor 100 and over
  • Input Sensitivity: Phono input MM: 2.5 mV / 47 kohm
    MC: 200
  • RIAA Deviation 20 Hz - 20 kHz ±0.5 dB (MM/MC)
  • Phono Maximum Input MM : 130mV / 1kHz
    MC : 10mV / 1kHz
  • Input Sensitivity: CD/LINE/RECORDER 125 mV / 19 kohm
  • Input Sensitivity: Power Amp input 0.85V / 47kohm (EXT. PRE)
  • Signal to Noise Ratio PHONO (MM): (89dB)
    PHONO (MC): (74dB)
    CD: (107dB)
  • Tone Control BASS : 100Hz ±8dB
    TREBLE : 10kHz ±8dB
  • Power Consumption 295W
  • at Standby 0.2W TV autoplay off
    0.4W TV autoplay on
  • Power Amplifier Circuit New UHC-MOS
    Single Push Pull (7)
  • Power Trans Dual El Core
  • Pre Amplifier Circuit Variable Gain Preamplifier
    (OP AMP)
  • Volume Electric
    (MUSES 72323)
  • Bass / Treble / Mid / Balance Control Yes / Yes / No / Yes
  • Type of Tone Control Electric
    Controlled by Potentiometer
  • Headphone Circuit Use Poweramplifier
  • Source Direct Yes
  • Analog Amp Mode Yes (button on front panel)
  • Other 70
  • DAC Circuit PCM1795
  • Digital Filter Fixed
  • Digital Processing Advanced AL32 Processing Plus
  • DAC Master Clock Design (Doesn’t Support Network Playback) Yes
  • Asyncronous mode (for USB-B input) yes
  • Isolator (for USB-B input) Yes
    Full Isolation
  • Phono Input Yes (MM / MC)
    *default=MM

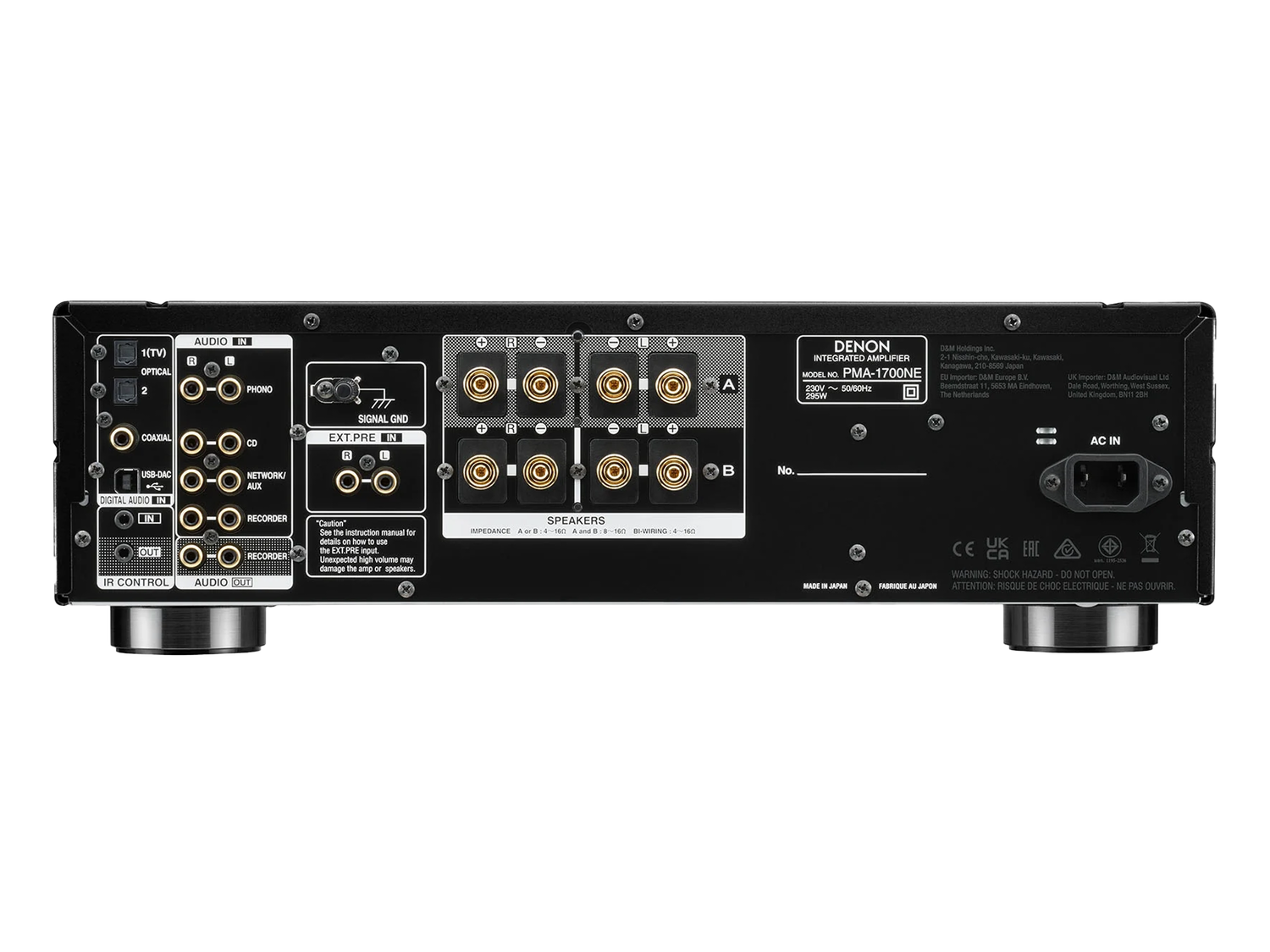

  • Analog Input (include Phono) / REC Out (RCA) 4/1 (PHONO/ CD/ AUX/ RECORDER)
  • Optical input / output (Maximum Support) 2 / 0 (192kHz/24bit)
  • Coaxial input / output (Maximum Support) 1 / 0 (192kHz/24bit)
  • Ext. Pre Input (Power Amp Direct) Yes(Ext.Pre)
  • 2 sets of Speaker Output Yes (Bi-wiring)
  • Speaker Terminal Gold Plated
  • Headphone Output 1
    (Turn off the speaker when inserting headphone)
  • Remote Control Bus Terminal Yes (mini)
  • AC Inlet Yes
  • Wi-Fi No
  • HEOS No
  • USB B (USB DAC) 1 (Rear)
  • Module or Main Device New XMOS
    (XU210-256-TQ128 )
  • PCM Sample Rate ~384kHz/32bit
  • DSD Audio Streaming (DoP) ~11.2MHz
  • Roon Certificaton Yes(Roon Tested)
    TBD
  • Remote Controller System Remote
    (w/CD Player Control)
  • Unit control (Button) Push Switch: 1
    POWER
    Tact Switch : 3
    ANALOG MODE, SOURCE DIRECT, MM / MC
  • Unit control (Knob) 5
    VOLUME, INPUT SELECTOR, BASS, TREBLE, BALANCE
  • LED POWER: 1 Red / Green
    ANALOG MODE: 1 Green
    SOURCE DIRECT: 1 Green
    MM / MC :1 Green
  • Front Panel Display Yes
    (OLED 128 x 100 dot)
    MXS4036-A
  • Display Language Alphabetical
  • Dimmer for Front Display Bright / Dim / Dark / Off
  • Control with App via Network Player (Use Remote Control Bus) Yes
  • TV Auto-play (Opt/Coax digital-in detecter) Yes
  • Last Function Memory Yes
  • Auto Standby Mode Yes
  • Owner's Manual Web Manual
    E2: (English, German, French, Italian, Dutch, Spanish,
    Swedish, Polish, Russian)
    E3: (English, French, Spanish)
    E1C: (Simplified Chinese)
    JP: (Japanese)
    Paper
    JP: (Japanese)
  • Quick Start Guide Paper
    E2: (English, German, French, Italian, Dutch, Spanish,
    Swedish, Polish, Russian)
    E3: (English, French, Spanish)
    E1C: (Simplified Chinese)
    JP: (Japanese)
  • Remote Controller Yes
  • Battery Yes (AAA x2)
  • Power Cord Yes
