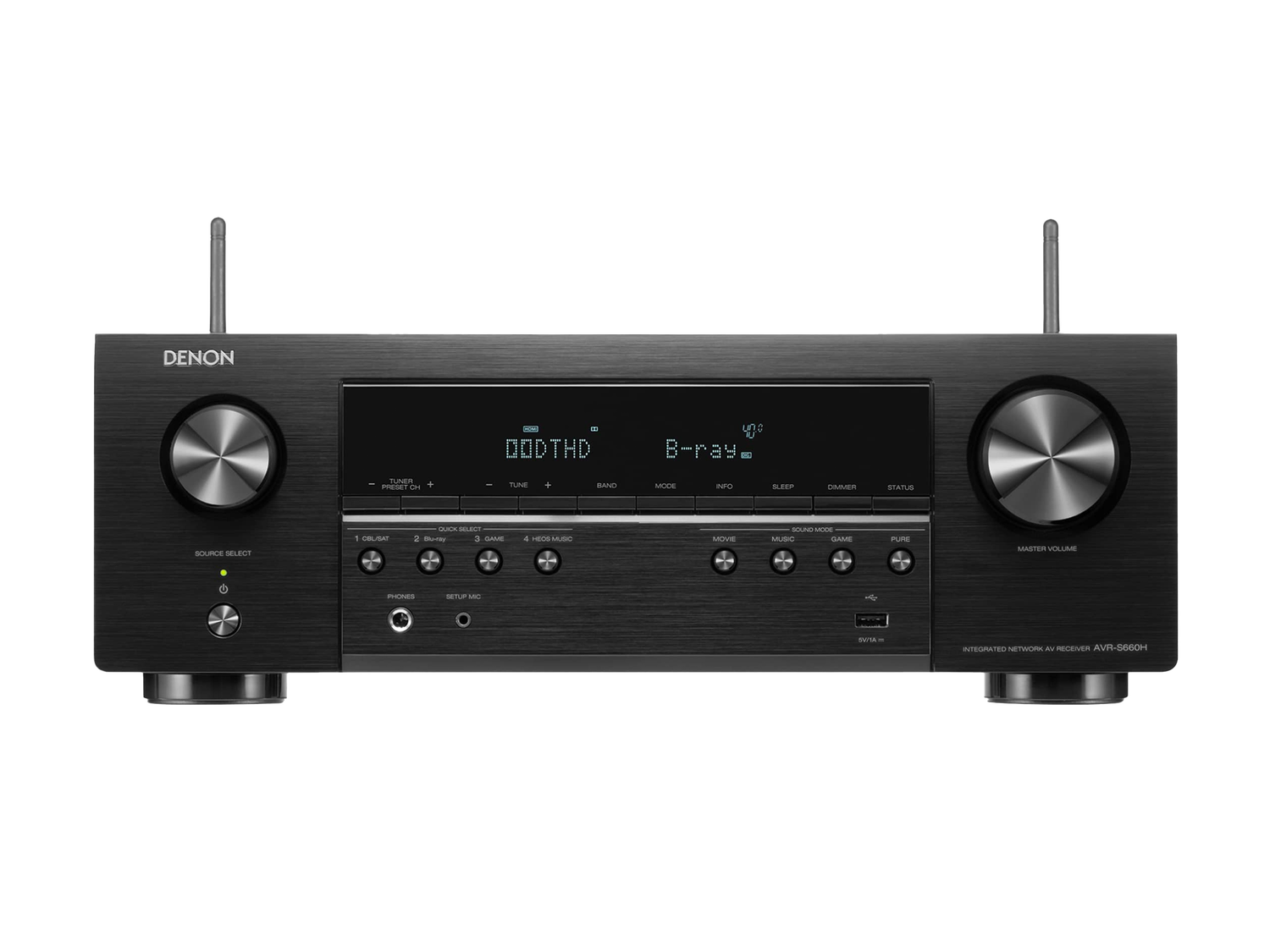

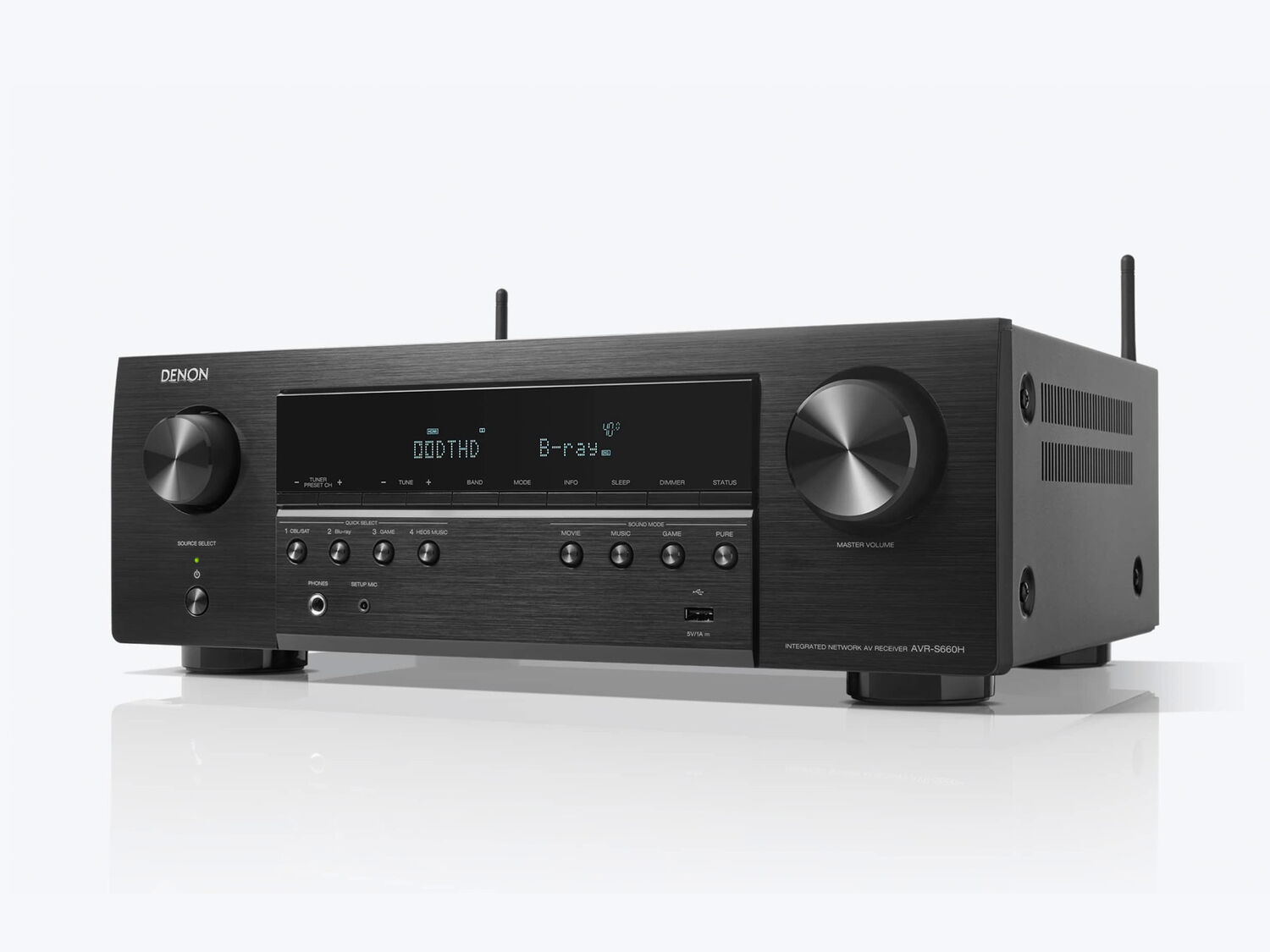

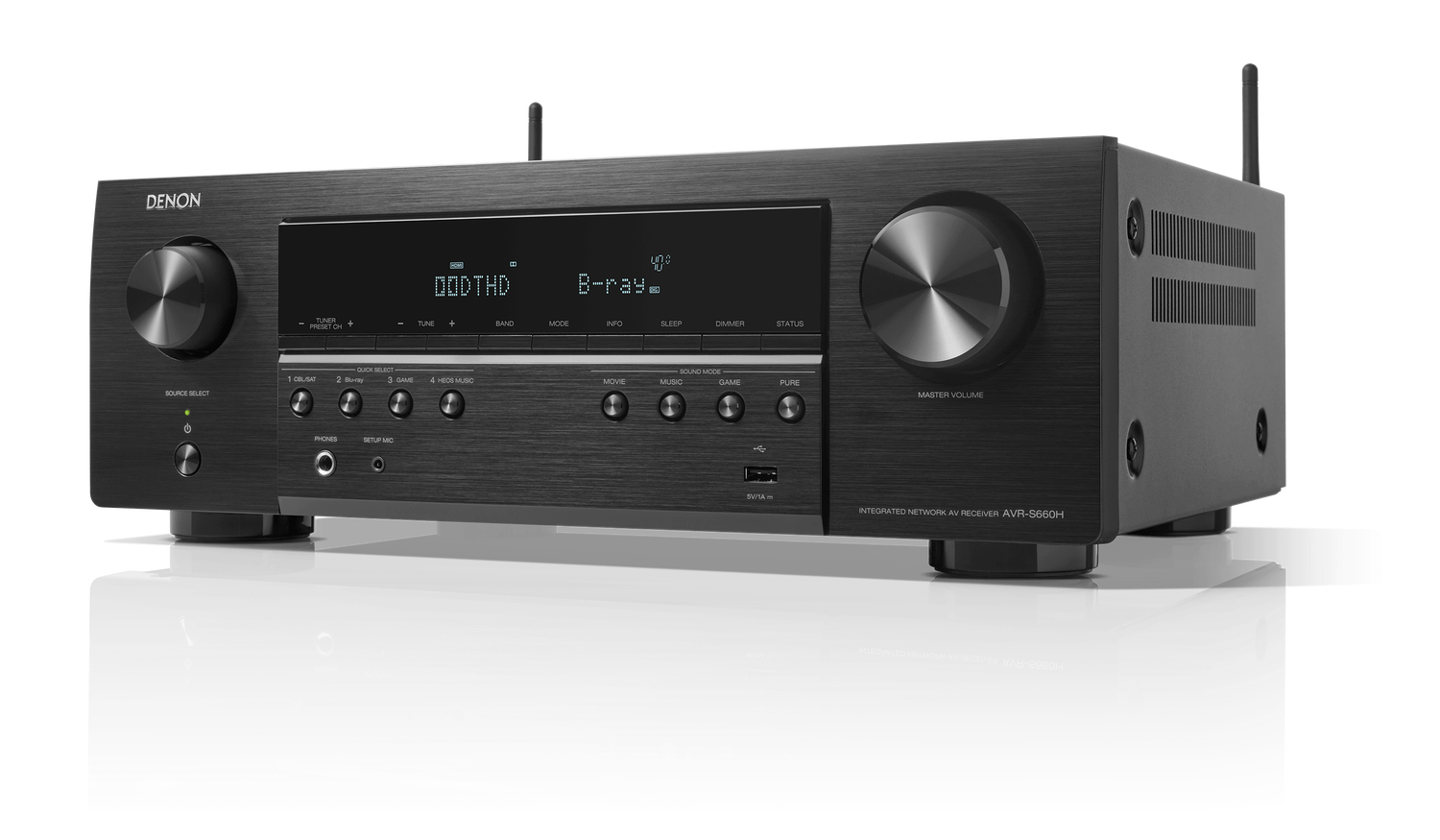

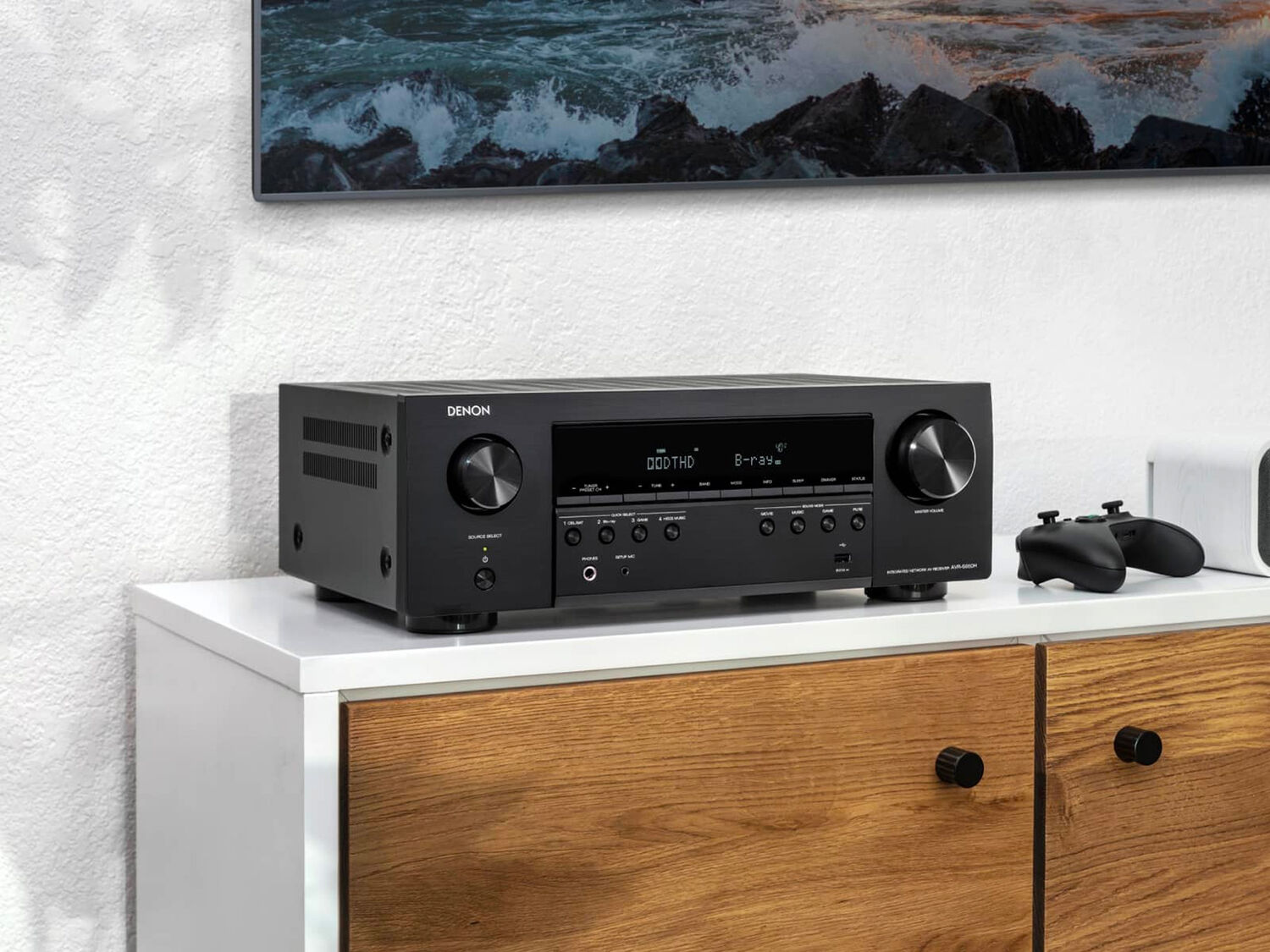

AVR-S660H

5.2 Ch. 75W 8K AV Receiver Powered by HEOS™

$379 MSRP: ~~Price reduced from $499~~

Price match

Designed for 4K or 8K setups, the AVR-S660H delivers superior 3D audio home theater/gaming experiences and supports the latest HDMI specifications.

5.2 channels
75 watts per channel
8K Ultra HD
3D Audio
HEOS Built-in
6 HDMI inputs

Select Quality

Color

Black

Black

Buy now
Retailers

Out of Stock

Out of Stock

Find a Retailer

AVR-S660H

AVR-S660H

$379 MSRP: ~~Price reduced from $499~~

$379 MSRP: ~~Price reduced from $499~~

AVR-S660H

Details & Specifications

Specifications

Number of Power Amps 5
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) 75 W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 100 W
Power Output (6 ohm, 1 kHz, 1% 1ch Drive) 135 W

General

Speaker impedance 4-16Ω/ohms
Input sensitivity 200 mV
Frequency response 10 Hz - 100 kHz — +1, –3 dB (Direct mode)
S/N Ratio 98dB (IHF-A weighted, Direct Mode)
FM section (Tuning frequency range) 87.5 – 107.9 MHz
AM section (Tuning frequency range) 520 - 1710 kHz
Power Supply AC 230 V, 50 Hz
Power Consumption in W 340
Power Consumption No-Sound (ECO On / Off) in W 29 W / 39 W
Weight in kg 7.8
3.5mm audio line-in connection Yes

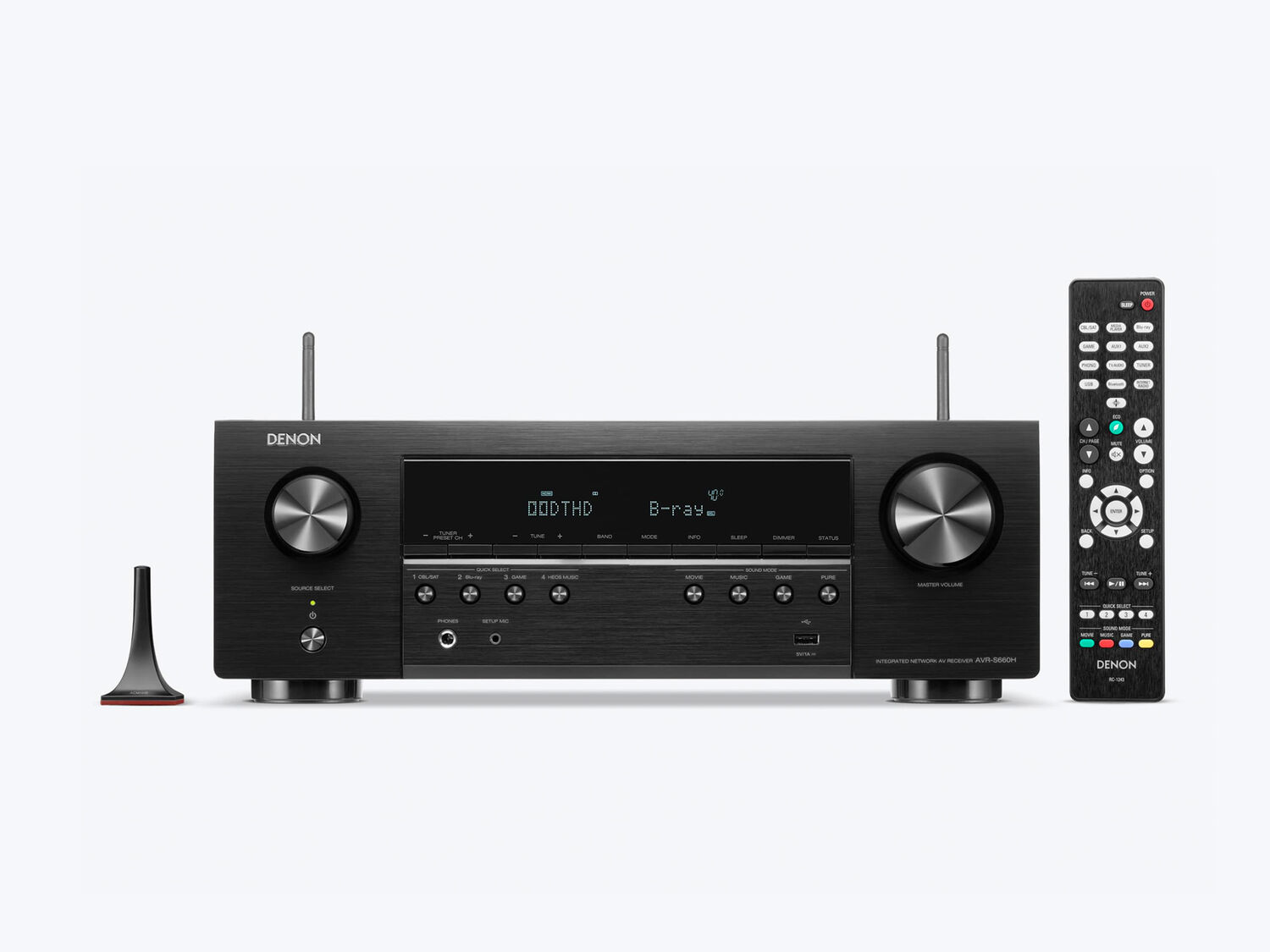

System Remote Control RC-1243
Standby Consumption in W 0.1
CEC Standby Consumption in W 0.5
Network Control On Consumption in W 2.0
Available colours: Black / Premium Silver Yes / No
Maximum Dimensions w/ Antenna 434 x 339 x 215 mm
w/o Antenna 434 × 339 × 151 mm
Carton Maximum Dimensions (W x D x H) 523 x 435 x 232 mm
Carton Weight (inc. product) in kg 9.7

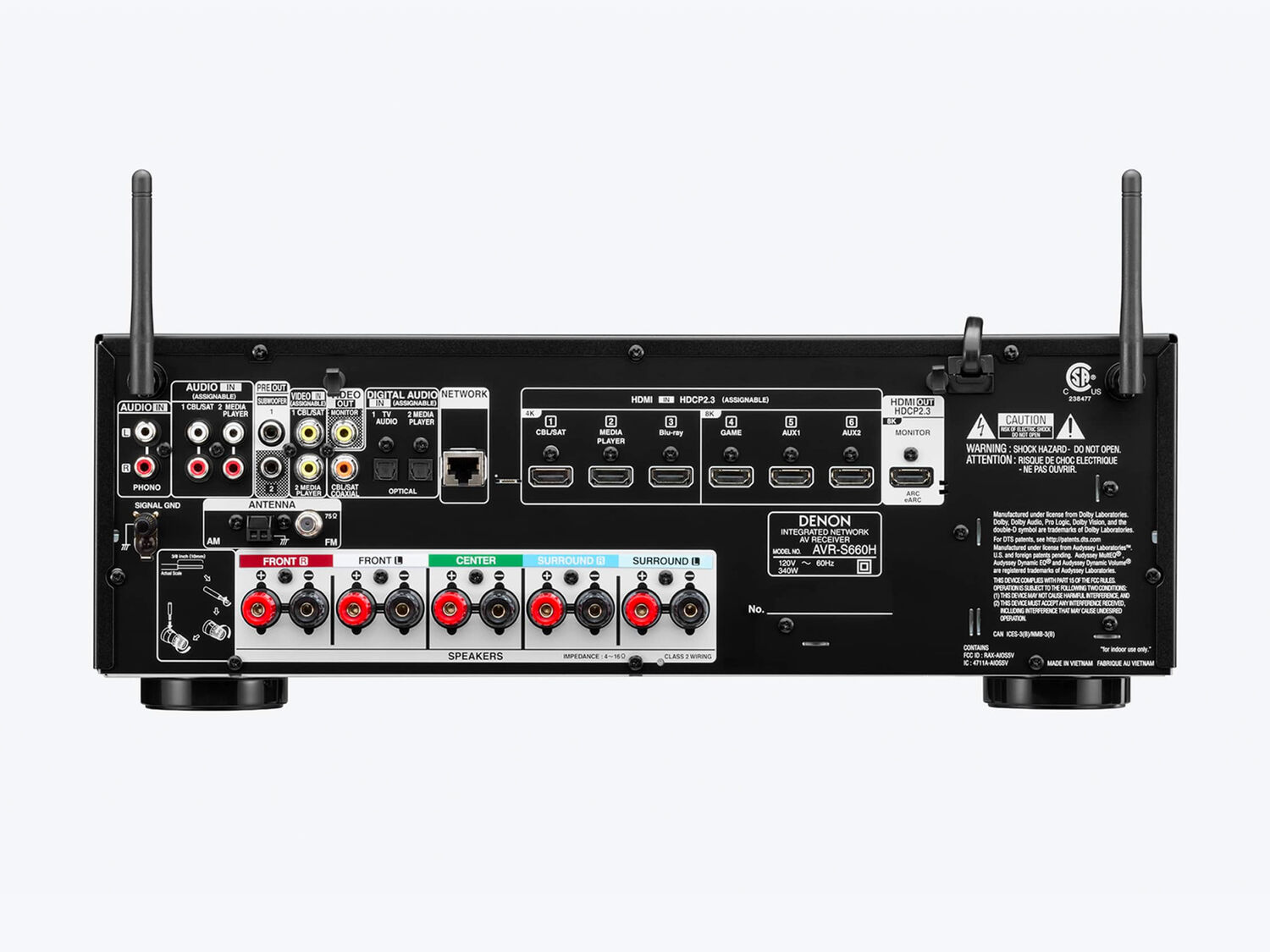

Inputs Outputs

HDMI In / Out 6 / 1
Composite In / Out 2 / 1
Phono (MM) In Yes
Analogue In/out 2 / -
Digital Optical In/Out 2 / No
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB No / No / No / No / Yes
Pre-out / Main-in 0.2 ch / no
Headphone output Yes
Ethernet Yes
AM/FM Tuner Yes
Digital In: Optical / Coaxial 2 / 0
Multichannel Preout o (0.2)
Subwoofer Out 2
Number of Speaker Terminals 5
USB Audio / Made for iPod / Made for iPhone o / AirPlay / AirPlay
Speaker Terminal: Gold Plated Screw / Regular Screw No / Yes
FM Tuner with RDS Yes

Multichannel Surround

DTS Neo:X / DTS Neural:X NEO: 6 / -
Max Number of Processing (Preamp) Channels 5.1
DTS HD Master / DTS:X Yes / No
Dolby TrueHD / Dolby Atmos Yes / No
Multichannel Stereo Yes
Dialog Enhancer Yes
Dolby ProLogic II / Dolby Surround Yes / No

Sound Enhancements

Discrete Power Amplifier 5
Audyssey MultEQ
Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
Compressed Audio Restorer Yes

Network

DSD Audio Streaming up to DSD5.6
Gapless playback Yes (FLAC, WAV, ALAC, DSD)
Internet Radio TuneIn
Compatible with Remote APP for Smart Phones Android / iOS
Compatible with Remote APP for Tablets Android / iOS / Amazon Kindle
HEOS Multiroom and Streaming Yes
Lossy Formats: MP3 / WMA / AAC Yes / Yes / Yes
Lossless Formats: FLAC / ALAC / WAV Yes / Yes / Yes
FLAC HD 192/24 Yes
WAV 192/24 Yes
ALAC 192/24 Yes
AirPlay 2 Yes
Roon Tested Yes
Spotify Connect* / Tidal* / Deezer* / others * Yes / Yes / Yes / Yes
Amazon Prime Music* / Pandora* Yes / No
Ethernet Ports Yes
Wi-Fi Yes
Bluetooth Yes
Bluetooth Re-transmit for Bluetooth headphones Yes

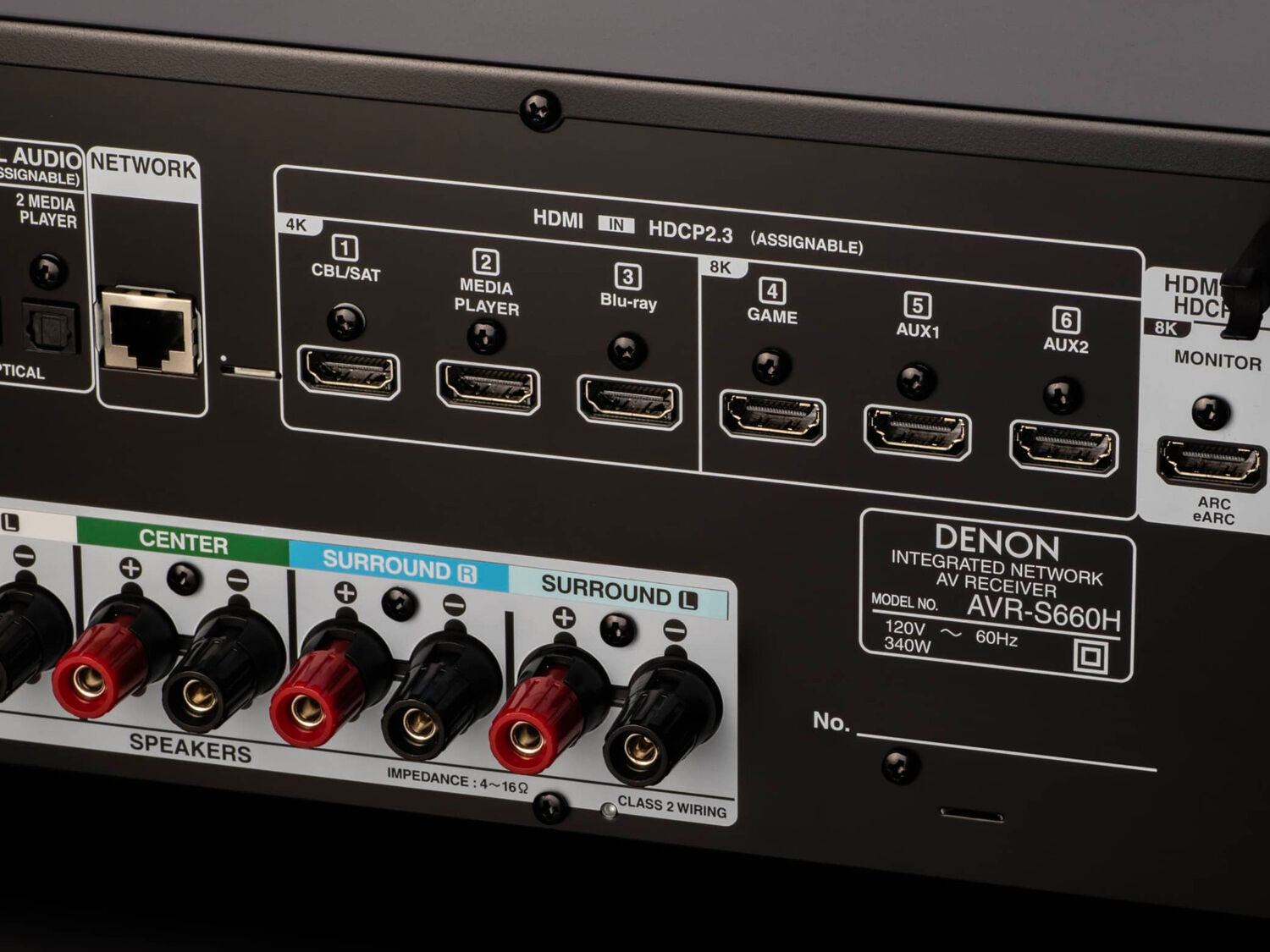

HDMI

HDMI Inputs: Back / Front 6 (3x 8K) / 0
HDMI max Resolution (8k / 4k) 8k/60 - 4k/120
HDMI to HDMI Scaling up to 8K 60/50
HDCP2.3 support Yes
HDMI: 8K / 4K / CEC / eARC Yes / Yes / Yes / Yes
HDMI: Dolby Vision / HDR 10+ / Dynamic HDR / HLG Yes / Yes / Yes / Yes

Others

Auto Speaker Setup by Microphone Audyssey MultEQ
FL Display 1 line
Graphic User Interface - GUI Hybrid GUI
GUI Languages 9
Voice Control - Works with Amazon Alexa Yes
Voice Control - Google Assist / Apple Siri Yes / Yes
Setup Assistent Yes
Quick Select Plus / Quick Select Yes / No
Firmware Update by: Network / USB Yes / Yes
Variable Cross Over Yes
Optimized Bass Redirection Yes
ECO Mode Yes
Auto Power Off Yes
Sleep Timer Yes

Multi-room CI

HEOS Multiroom integrated Yes
TV Sound grouping Yes
Main room multichanel audio - Zone stereo downmix Yes
Webbrowser Setup Yes
IP Control / RS232 Control / Web Control / App Control Yes / No / Yes / Yes
