PMA-60

Name: PMA-60
Brand: Denon
SKU: 137204-02-00-101
Price: 599.00 USD
Availability: OutOfStock

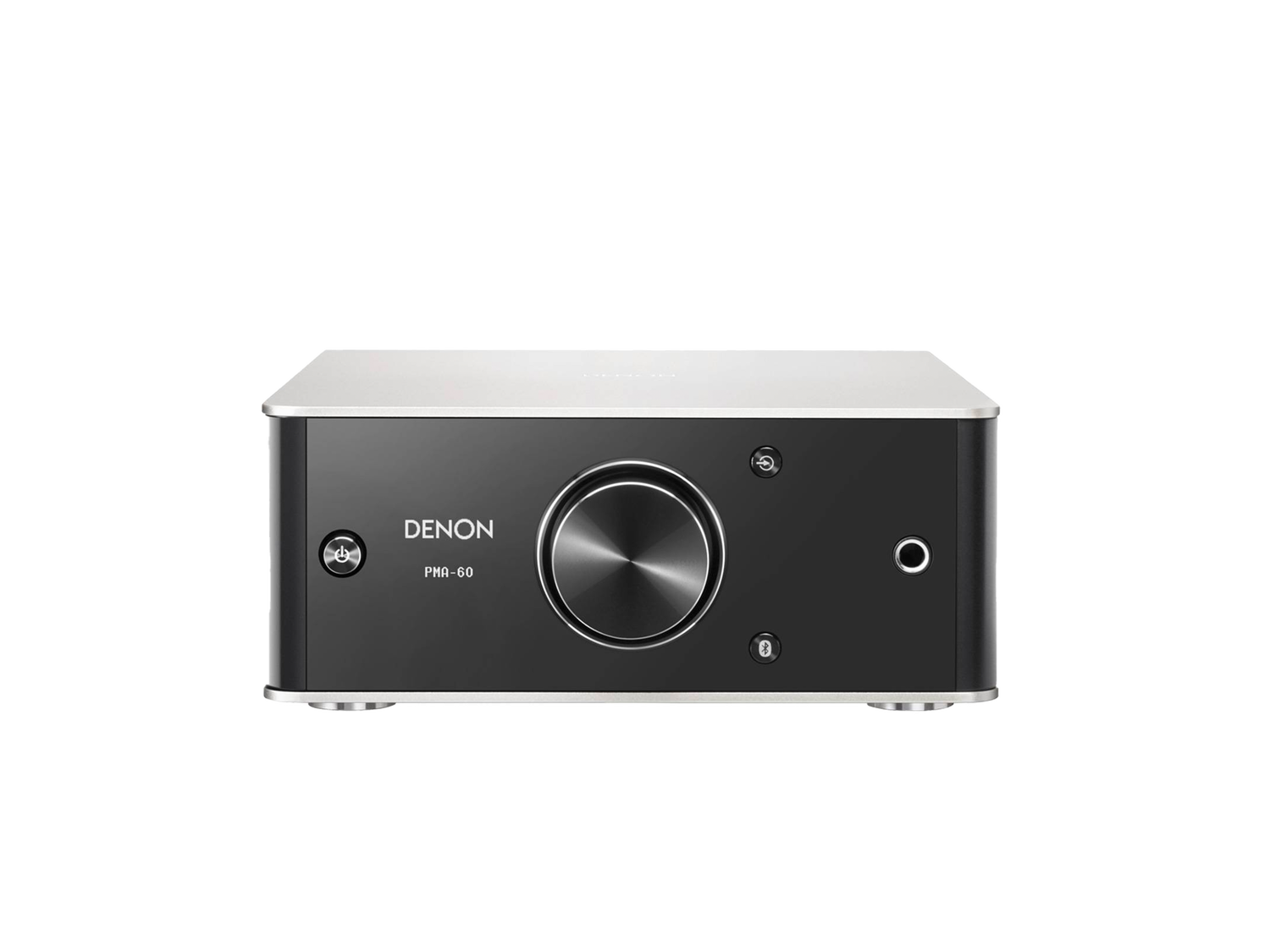

Stereo integrated amplifier with built-in DAC and Bluetooth®

Introducing the Denon Design Series: Real Hi-Fi For Today�s Lifestyles. The PMA-60 amplifier delivers true Denon sound, with outstanding performance despite its compact size.

Select Quality

Color

Silver

PMA-60

Details & Specifications

Owner’s Manual

Features

Channels 2
Sample Rate digital In 192 kHz / 24-bit
USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 <=11.2
USB-B PCM sample rate 384 kHz / 32-bit
Asynchronous mode rear USB Yes
Bit-perfect transmission Yes
Ground isolator for DAC Mode operation Yes
Bluetooth / aptX / NFC Yes
Balance / Bass / Treble / Loudness Yes /Yes /Yes / No
Vertical installation Yes
Low Noise OELD display Yes
Source Direct Yes

Inputs Outputs

Audio Inputs 1
Digital in: USB-B / optical / coaxial / USB-A Yes / 2 /Yes / No
Pre-out / Main-in No
Number of terminals 2
Headphone Out Yes
Headphone Gain Control (low / mid / high) Yes

Specifications

Output power 8 Ohm (20 Hz - 20 kHz, T.H.D. 0.07%) (20 Hz - 20 kHz, T.H.D. 0.07%) 25W (1kHz)
Output power 4 Ohm (1 kHz, T.H.D. 0.7%) (1 kHz, T.H.D. 0.7%) 50 W
Total Harmonic Distortion 0.004%
Signal to Noise Ratio: MM/MC No / No
Input Sensitivity: High level 70 mV
Signal to Noise Ratio: High level 110dB
Treble Control ± 8 dB at 12 kHz
Bass Control ± 8 dB at 100 Hz

General

Available colors: Premium Silver / Black Yes / No
Power Consumption in W 35
Standby Consumption in W 0.2
Auto Power Off Yes
Detachable Power Cable Yes
Remote Control RC-1220
Maximum Dimensions (W x D x H) in inches 7.87 x 9.45 x 3.39
Weight in LBS 5.75
