PMA-50

Name: PMA-50
Brand: Denon
SKU: 800013-1
Availability: OutOfStock

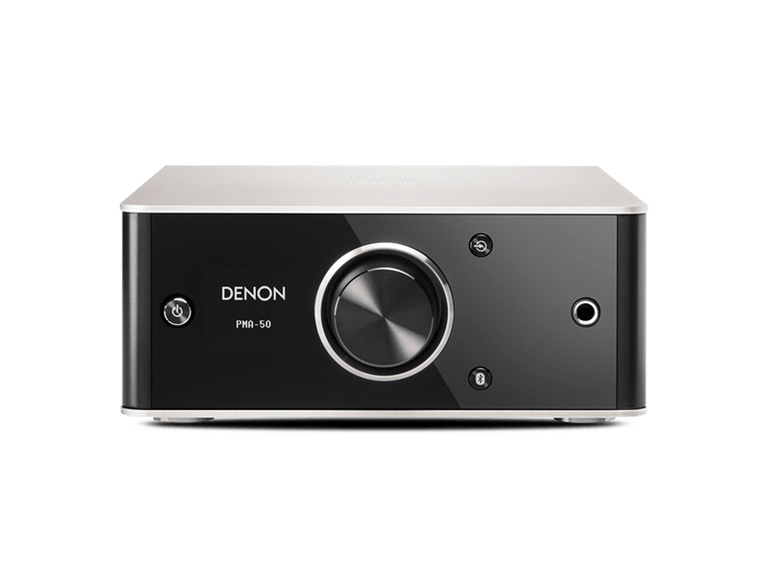

Stereo integrated amplifier with built-in DAC and Bluetooth®

The Denon PMA-50 is a compact and sleek stereo amplifier designed for modern audio enthusiasts, offering 50 watts per channel, high-resolution audio support, USB-DAC functionality, and Bluetooth connectivity.

Color

Silver

PMA-50

Details & Specifications

pma-50-owners-manual-en.pdf

Features

Channels 2
UHC-MOS single push pull circuit No
Advanced HC-TR single push pull circuit No
LC mounted twin transformer No
Wide range amplifier No
High current dynamic power supply No
Power amp discrete construction No
Micro processor auto off No
Solid Heat Sinks No
Source Direct No
Power Amp direct No
Balance / Bass / Treble / Loudness Yes / Yes / Yes / No

Dac Mode

Digital in: USB-A / USB-B / optical / coaxial No / Yes / Yes / Yes
Sample Rate digital In 192 kHz / 24-bit
Asynchronous mode rear USB Yes
Bit-perfect transmission Yes
USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 Yes / Yes
Ground isolator for DAC Mode operation Yes
AL 32 Processing Yes (Advanced)
DAC Master Clock Design Yes
Bluetooth / aptX / NFC Yes / Low Latency / Yes
Vertical Installation Yes
Low Noise OELD display Yes

Inputs Outputs

Audio Inputs 1
Digital in: USB-B / optical / coaxial 1 / 2 / 1
Phono Input: MM / MC No / No
Audio Outputs No
Pre-out / Main-in Subwoofer / No
Power Amp Direct IN No
Gold plated Cinch No
Speaker A / B No
Number of terminals 2
Remote Control Bus in / out Yes (gain control)

Specifications

Output power 8 Ohm (20 Hz - 20 kHz, T.H.D. 0.07%) 30 W
Output power 4 Ohm (1 kHz, T.H.D. 0.7%) 50 W
Total Harmonic Distortion 0.00%
Input Sensitivity: MM No
Input Sensitivity: MC No
Signal to Noise Ratio: MM/MC No / No
Input Sensitivity: High level 70 mV
Signal to Noise Ratio: High level 110dB
Treble Control ± 8 dB at 12 kHz
Bass Control ± 8 dB at 100 Hz

General

Available colors: Premium Silver / Black Yes / No
Metal Front Panel No
Power Consumption in W 35
Standby Consumption in W 0.2
Auto Power Off Yes
Detachable Power Cable Yes
Remote Control RC-1202
System Remote Function No
Maximum Dimensions (W x D x H) in mm 200 x 238 x 90
Weight in kg 5 lbs 8 oz
