AVC-X8500HA

13.2 Ch. 150W 8K AV Receiver Powered by HEOS™

Upgrade your expectations in home theatre and audio entertainment with the AVC-X8500HA – the world’s first 13.2Ch 8K AV amplifier.

13.2 channels
150 watts per channel
8K Ultra HD
3D Audio
HEOS Built-in
8 HDMI inputs

Select Quality

Colour

Black Silver

Black

AVC-X8500HA

Details & Specifications

Multichannel Surround

IMAX Enhanced Yes
DTS HD Master / DTS:X Yes / Yes
DTS Neo:X / DTS Neural:X No / Yes
DTS Virtual:X Yes (update)
Dolby TrueHD / Dolby Atmos Yes / Yes
Dolby ProLogic Il / Dolby Surround No / Yes
Auro 3D Yes
Multichannel Stereo Yes
Max Number of Processing (Preamp) Channels 13.2

Sound Enhancements

Mono Block Power Amp Construction Yes (L/R separated)
Discrete Power Amplifier 13
D.D.S.C. HD Digital Yes (32 bit)
Pure Direct Yes
High Grade Audio Components Yes
Gold-Plated RCA Terminals Yes
Clock Jitter Reducer Yes
Alpha Processing AL32 Processing Multichannel
Denon Link HD Yes
Audyssey MultEQ XT32
Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
Audyssey LFC Yes
Audyssey APP Support Yes
Compressed Audio Restorer Yes

Network

HEOS Multiroom and Streaming Yes
Lossy Formats: MP3 / WMA / AAC Yes / Yes / Yes
Lossless Formats: FLAC / ALAC / WAV Yes / Yes / Yes
DSD Audio Streaming up to DSD5.6
FLAC HD 192/24 Yes
WAV 192/24 Yes
ALAC 192/24 Yes
Gapless playback Yes (FLAC, WAV, ALAC, DSD)
AirPlay Audio Streaming Yes
Internet Radio TuneIn
Spotify Connect* / Tidal* / Deezer* / others * Yes / Yes / Yes / Yes
Compatible with Remote APP for Smart Phones Android / iOS
Compatible with Remote APP for Tablets Android / iOS/Amazon Kindle
Ethernet Ports Yes
Wi-Fi Yes
Bluetooth Yes
AirPlay 2 Yes (update)

HDMI

HDMI Inputs: Back / Front 7 / 1
HDCP2.3 support Yes
HDMI Outputs: Main / Zone 2 / 1
HDMI max Resolution (8k / 4k) 8k/60 - 4k/120**
Video Conversion Analog -> HDMI Yes
HDMI to HDMI Scaling up to 8K 60/50
HDMI: 8K / 4K / CEC / eARC Yes / Yes / Yes / Yes
HDMI: Dolby Vision / HDR 10+ / Dynamic HDR / HLG Yes / Yes / Yes / Yes
HDMI: ALLM / QMS / QFT / VRR Yes / Yes / Yes / Yes
HDMI pass-though in standby mode Yes
DSD Audio Capability Yes

Multi-room / CI

HEOS Multiroom integrated Yes
TV Sound grouping Yes
Multi-Room Zones 3
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog Yes (2ch) / Yes (2ch) / Yes / Yes
Zone Audio Output: Speaker / Preout Yes / Yes
Zone HDMI Output from HDMI Source Yes
IP Control / RS232 Control / Web Control / App Control Yes / Yes / No / Yes
Remote In / Out Yes / Yes
DC Trigger Output 2

Others

Auto Speaker Setup by Microphone Audyssey MultEQ XT32
FL Display 2 lines
Graphic User Interface - GUI Advanced
ISF Certification Yes
GUI Languages 9
Setup Assistant Yes
Quick Select Plus / Quick Select Yes / No
Firmware Update by: Network / USB Yes / Yes
Variable Cross Over Yes
Optimized Bass Redirection Yes
Bass Sync Yes
ECO Mode Yes
Auto Power Off Yes
Sleep Timer Yes

Inputs/Outputs

Composite In / Out 4 / 2
Component In / Out 3 / 1
HDMI In / Out 7+1 / 3
Multi-room Video Out: Video / HDMI Yes / Yes
Analogue In/out 6+1 / No
Phono (MM) In Yes
Digital In: Optical / Coaxial 2 / 2
Multi-room Out: Analog / Digital 2 / No
Multichannel Pre-Out Yes (15.2)
Subwoofer Out 2 (independent)
7.1 Multichannel Input Yes
Speaker Terminal: Gold Plated Screw / Regular Screw Yes / No
Number of Speaker Terminals 15
Speaker A/B / Bi-amp Drive / Multi-Room Speaker assignable
Speaker A / B assignable
Bi-amp Drive assignable
Multi-Room Speaker Terminal assignable
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB No / No / No / Yes / Yes
USB Audio / Made for iPod / Made for iPhone Yes / AirPlay / AirPlay

Specifications

Number of Power Amps 13
Power Output (8 ohm, 20Hz - 20kHz, 0.05% 2ch Drive) 150 W
Power Output (6 ohm, 1kHz, 0.7% 2ch Drive) 190 W
Power Output (6 ohm, 1kHz, 1% 1ch Drive) 210 W

General

Available colors: Black / Premium Silver Yes / Yes
Metal Front Panel Yes

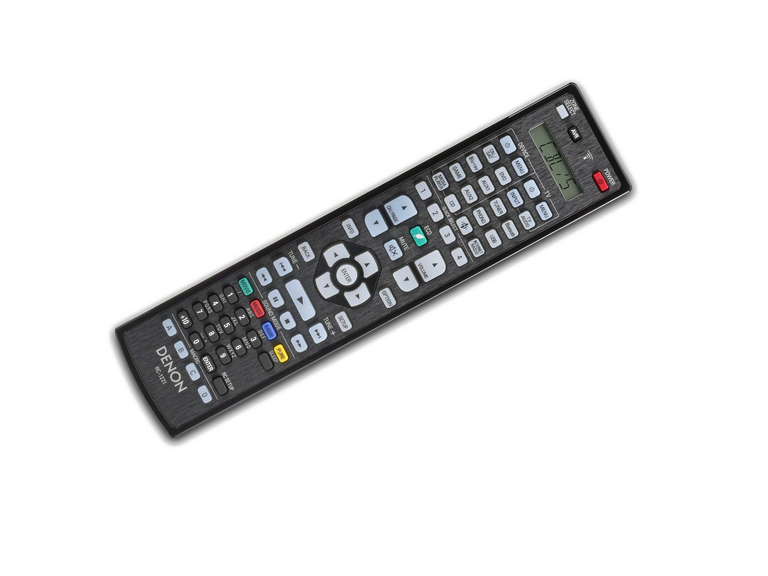

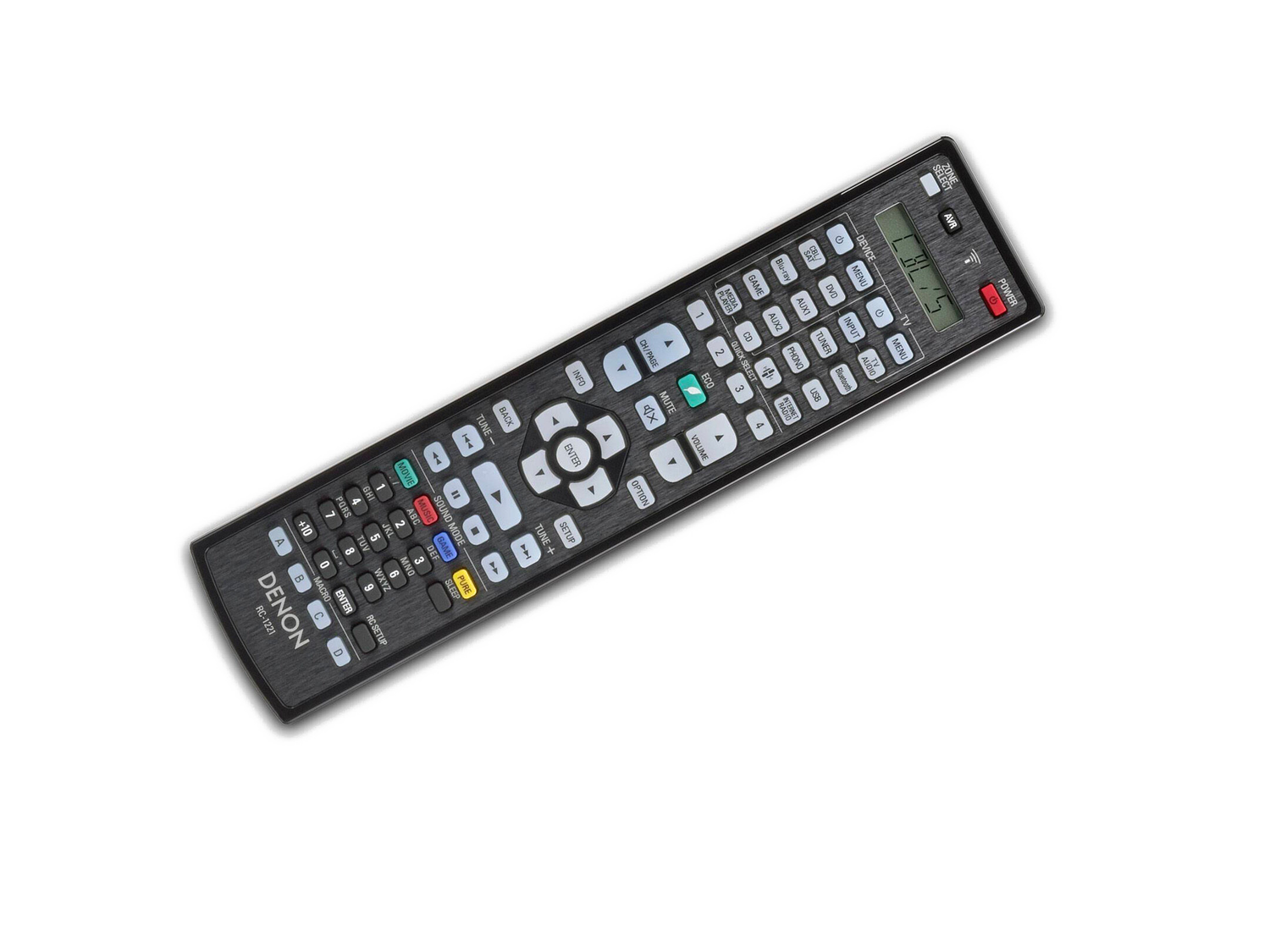

System Remote Control RC-1221
Pre-programmed / Learnable / LCD Display Yes / Yes / Yes
Power Consumption in W 900
Power Consumption No-Sound (ECO On / Off) in W 70 W / 125 W
Standby Consumption in W 0.1
CEC Standby Consumption in W 0.5
Network Control On Consumption in W 3.7
Maximum Dimensions
Antenna: Horizontal: (W x D x H) in Inches
Antenna: Vertical: (W x D x H) in Inches
W/O Antenna: (W x D x H) in Inches 434 x 482 X 195
(434 x 482 X 259)
【 434 x 472 x 195 】
Weight in kg 23.3
